- Condition: Refurbished
- Origin: CN(Origin)
- Application: Computer Case
- Package: No
- Bearing: Two Ball Bearing
- Fan Life: 100000 hrs
- Lines: 4 Lines
- Type: Fan
- Power Interface: 4pin
- Model Number: QFR1212GHE
- Heatsink Material: Plastic
- Air volume: 210.38CFM
- Power: 32.4W
- Voltage: 12V
- Current: 2.70A
- Speed: 6000rpm
Be engaged in Customized cooling fans for various purposes.
Free Free to Contact Us!

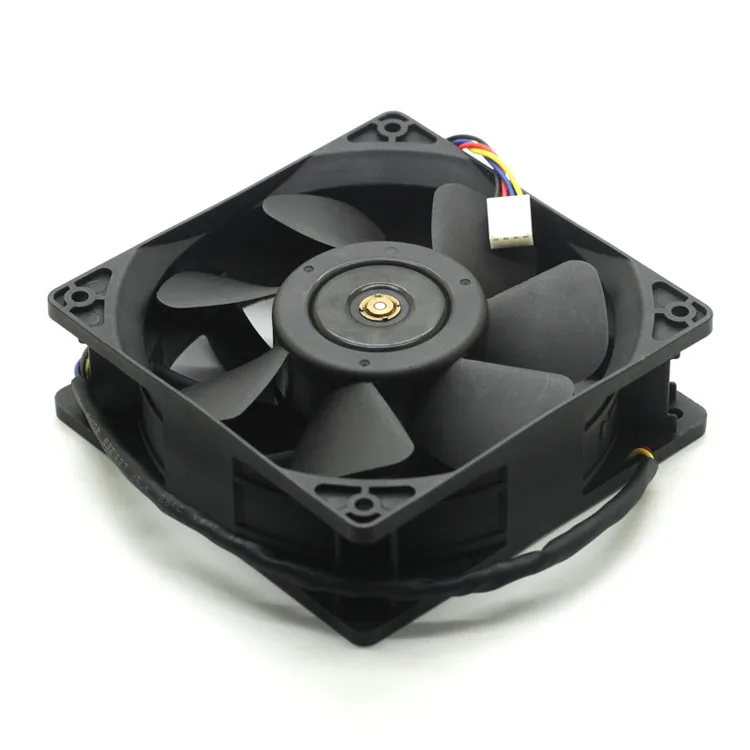

Brand: Delta
Model: QFR1212GHE
IBM spare part No. P / N: 74Y5220
Connector: 4PIN original server double connector
Size: 120 x 120 x 38mm
Voltage: DC 12V
Current: 2.70A
Speed: 6000rpm
Air volume: 210.38cfm
Wind pressure: 21.60mmh2o
Noise: 64dBA
Bearing: high precision double ball bearing
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Rotation direction of fan: anticlockwise as seen from the direction of fan blade
Operating temperature: – 10 ° C to + 70 ° C
Storage temperature: – 40 ° C to + 70 ° C
Power supply range: plus or minus 15% of rated power supply
Insulation resistance: more than 500 megohm
Withstand voltage: sink leakage current 0.5ma500v/1min
Working life: 80000 hours at 25 ° C ambient temperature
Scope of application: workstation cooling / server CPU cooling
