- Condition: Refurbished
- Origin: CN(Origin)
- Application: Computer Case
- Package: No
- Bearing: Two Ball Bearing
- Fan Life: 50000 hrs
- Fan Speed Control: 3500RPM
- Lines: 4 Lines
- Type: Fan
- Power Interface: 4pin
- Model Number: AFB0812L/M/H/HH/VH/S
- Heatsink Material: Plastic
- Fan Size: 80x80x25mm
- Voltage: 12V
- Current: 0.12/0.18/0.24/0.3/0.41/0.51A
- Power: 1.44/2.16/2.88/3.6/4.92/6.12W
- Speed: 2300/2500/3000/3100/3500/4000rpm
Be engaged in Customized cooling fans for various purposes.
Free Free to Contact Us!
Brand: DELTA
Model: AFB0812L/M/H/HH/VH/SH

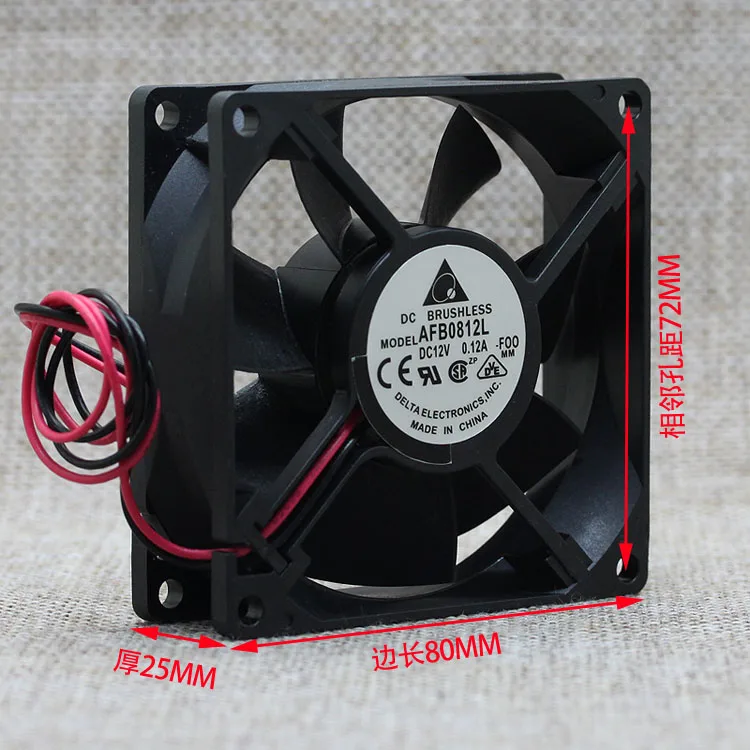

Size: 80 * 80 * 25MM
Bearing: double ball bearing
Standard voltage: 12V
Standard current: 0.12a/0.18a/0.24a/0.3a/0.41a/0.51a
Speed: 2300 RPM / 2500 RPM / 3000 rpm / 3100 RPM / 3500 rpm / 4000 rpm
Fan interface: 2-wire small 2P / 3-wire main board 3P (supporting speed measurement) / 4-wire main board 4P (supporting PWM temperature control and speed regulation)
Features: maintenance free double ball bearing, long service life, sufficient heat dissipation air volume and air pressure
Suitable for chassis cooling, CPU radiator, Internet bar supplement, power fan transformation, water cooling auxiliary, switching power cooling, high reliable server application place.

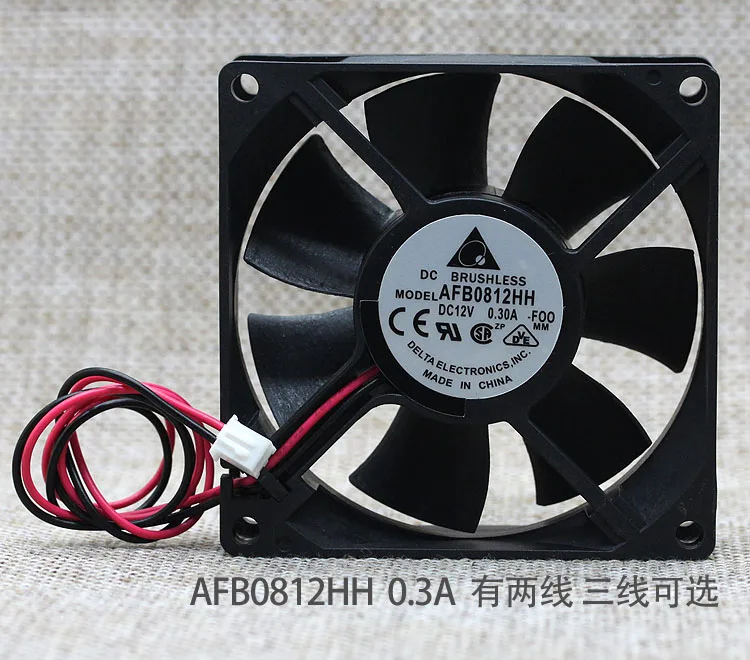

The fan has two lines, three lines and four lines, which can be selected according to your own needs
