- Condition: Refurbished
- Origin: CN(Origin)
- Application: Computer Case
- Package: No
- Bearing: Two Ball Bearing
- Fan Life: 100000 hrs
- Lines: 2 Lines
- Type: Fan
- Power Interface: 2PIN
- Model Number: AFB0624HH
- Heatsink Material: Plastic
- Air Volume: 27.55CFM
- Fan Speed Control: 5000RPM
- Voltage: 24V
- Current: 0.14A
Be engaged in Customized cooling fans for various purposes.
Free Free to Contact Us!

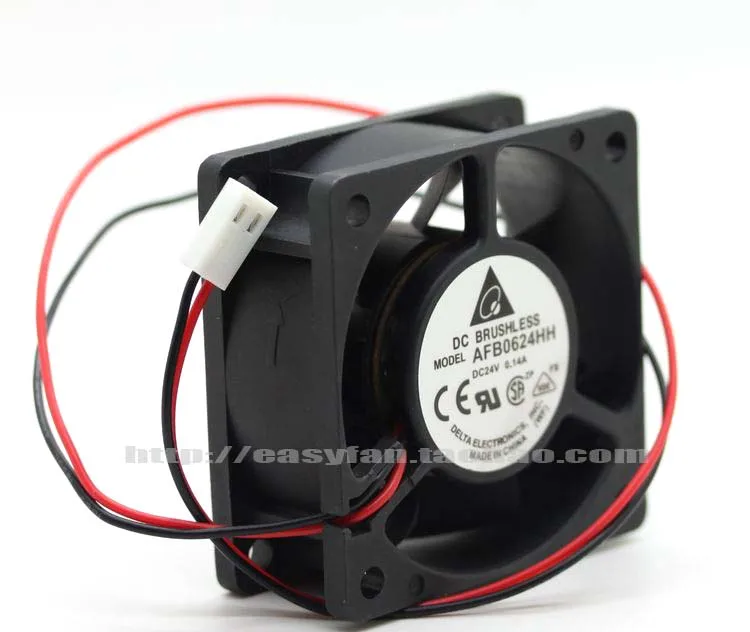

Delta brand
Producer Delta Electronics Public Co., Ltd
Model AFB0624HH
Size 60 * 60 * 25MM
Bearing double ball bearing
Standard voltage 24V
Lead: two wire small 2p interface, as shown below
Current 0.14A
Speed 5000rpm
Air volume 27.55cfm
Noise: 40.0 DB
Maintain the best continuous operation time of 80000 hours
Features maintenance free double ball bearing, long service life, with sufficient cooling air volume and air pressure. Service life: 8.0000 hours (at 25 ℃, 45-85% relative humidity)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Rotation direction of fan: anticlockwise from the direction of fan blade;
Operating temperature: – 10 ° C to + 70 ° C;
Storage temperature: – 40 ℃ to + 70 ℃;
Bearing: high precision ball bearing;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: more than 500 megohm;
Withstand voltage: sink leakage current 0.5mA 500V / 1min;
Working life: 80000 hours at 25 ° C ambient temperaturev
